Product Description
Prioritize safety with PDQ’s XGT/GT135 LED Series cylindrical lock. Our patented School Security Classroom Intruder Function is designed to keep staff and students safe in the event of an emergency lockdown situation. With a push of a quiet button, you can see if your doors are locked without having to open your door to check the outside lever. This lock was tested and exceeded the BHMA standards by over 2 to 3 times, proving it is ready to take on the toughest of applications.
Whether you’re upgrading existing door hardware or outfitting a new project, PDQ’s XGT/GT135 LED locks are the perfect solution. Connect with a sales representative in your region to get started.
Docs & Downloads:
Up your classroom safety with PDQ’s XGT/GT135 LED lock. Below are some of the top features and benefits.

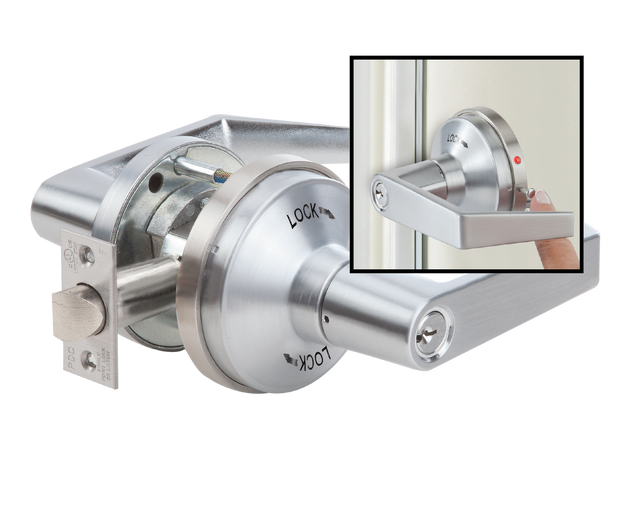

- Red LED outside lever status indicator
- When pushing the button located on the rose of the inside lock, the red LED lights up to signal that the outside lever is securely locked
- Battery life of up to 10 years, ensuring long-lasting reliability without frequent replacements
- Includes patented technology (US Patent #9,187,928), offering unmatched security and efficiency for educational settings
Features & Benefits
Certifications
Listed below are the certifications that the PDQ XGT/GT135 LED lock holds
- This lock is UL 10C listed for up to 3 hours, suitable for single doors measuring up to 4’ x 8’
- Add an optional 3/4” (19mm) throw deadlocking fire latch (FRL) for pairs of doors
- Meets ANSI/BHMA A156.2 Grade 1 standards
- It’s California Education Code Compliant for GT135, GT135LED, and GT145 functions
- Holds Federal Specification FF-H-10C (now superseded by A156.2)
- Approved for Florida's High Velocity Hurricane Zone (HVHZ) under PDQ Product Approval FL 21376.
- Has a design load rating of ±70.0 PSF for a single door (3’ x 7’)
- Complies with ADA and ICC/ANSI 117.1 for accessible and usable buildings
Specifications
Explore the listed specifications of our XGT/GT135 LED lock, designed for classroom security.
| PERFORMANCE: | • Motor drive factory tested to over1.4 million cycles (1.4 times the ANSI/BHMA grade 1 std) |
| RECOMMENDED POWER SUPPLY: | • PDQ Model # 81440. – Input: 120VAC, .9A, 50/60Hz 240VAC, .6.A, 50/60Hz – Output: 24VDC, 2A, filtered and regulated. • Rated for simultaneous operation of 2ea mortise lock assemblies. • Power Supply Requirements: – AC/DC Output Voltage – 1A min (filtered and regulated). • 12-24VDC @ < 1A initial surge (1 sec), 5mA standby after 30 sec. – AC Output Voltage. • 12-24VAC (60Hz) @ < 1A initial surge (1 sec),15mA standby after 30 sec |
| ELECTRICAL SPECIFICATIONS: | • Input voltage: 12-24VDC or 12-24VAC. • Max In-rush current: 1.0A. • Standby current: – 12VAC: 12mA. – 24VAC: 10mA. – 12VDC: 3mA. – 24VDC: 5mA. Note: Operating voltage at ± 10% of rated voltage |
| CERTIFICATIONS, LISTINGS, COMPLIANCES: | • ANSI/UL10C and CAN/ULC-5104 Listed for “Fire Exit Hardware” up to 3 hours for 4’0” x 8’0” maximum single, 8’0” x 8’0” maximum pairs • Assembled in the U.S.A. with U.S. and foreign material. Meets requirements of the Buy American Act as a COTS product manufactured in the United States |
| WARRANTY: | • 25-Years Mechanical / 2-Years Electronic |
Lever Designs & Finishes
Choose from the variety of listed finish and lever options available for our XGT/GT135 LED Series cylindrical lock!
Finishes
Levers
